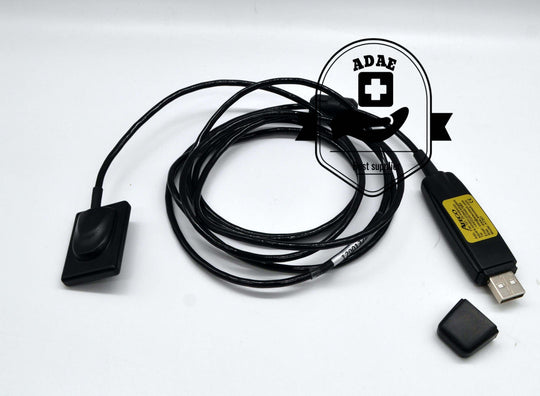

ATECO sensor X-ray sensor (UK-made)-New upgraded version

  • $1,899

[widgetic-facebook-like id=5a9bcc69ecb2a1d47b8b4569 autoscale=on width=431 height=62 resize=fill-width]

Crystal clear X-ray images helping you with better diagnosis

General description of ATECO sensors


  1. The whole cable is made of medical grade flame fire-retardant PU material. Good tensile resistance, antibacterial and protecting ultra fine conductive wire core. Long lifetime and durable in use.
  2. Waterproof design allows it to be wiped with a disinfecting solution.
  3. Upgraded CMOS technology with low power consumption. The lifetime of a professional clip is more than 500,000 times, which provides more durability and compatibility with all kinds of X-ray machines.
  4. The high details generated by ATECO X-ray and the low x-ray dose helps you to diagnose the tooth lesions and problems more accurately.
  5. The ability to provide professional connectivity solutions. All the information can be viewed in different locations.
  6. The scintillator makes high-definition images.
  7. Fast imaging employing steady acquisition, saving the filing time and improving work efficiency.
  8. Professional image management software to help you manage the X-ray images easily and efficiently.

Operating Conditions of ATECO X-ray sensors

  1. Environment Temperature: +10℃~+40℃
  2. Environment relative humidity: ≤95%;
  3. Air pressure: 860hPa~1060hPa;
  4. Safety Classifications
  5. Safety Type: Class-Ⅱ BF
  6. Power: DC5V Maximum 600MA.The rate of Work: Max 1W
  7. The degree of protection against ingress of water: IPX7
  8. Non-AP equipment, non-APG equipment
  9. Mode of operation: Continuous operation

Technical parameters

  1. Model : AT301 With TAWAIN DRI
  2. Size: 38.5X27.5X6mm.
  3. Active area: 22.5X30mm.
  4. Pixel size: 18.5um.
  5. Resolution: 27+Ip/mm.
  6. Scintillator: GOS.
  7. Image pixel: 1.9M (1600X1200).
  8. Operation system: Compatible with all Windows versions (32 bit&64bit).
  9. Chip type: CMOS APS.
  10. Cable length: 2 Meters.

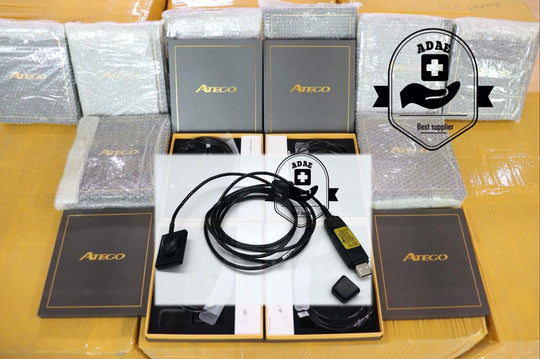

Packing list for ATECO sensors

  1. Manual 1pc
  2. ATECO original software 1pc
  3. X-Ray Sensor 1pc
  4. Holder 1pc
  5. Sleeves 1 bag


 Two years

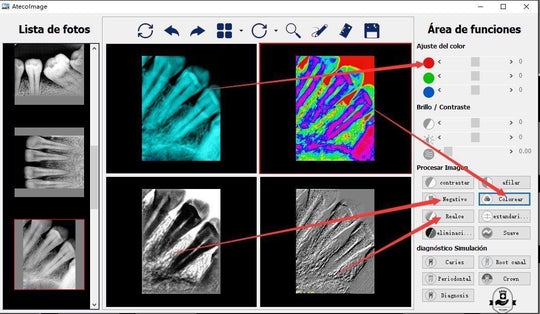

Screen shots of ATECO AT301 operating software
