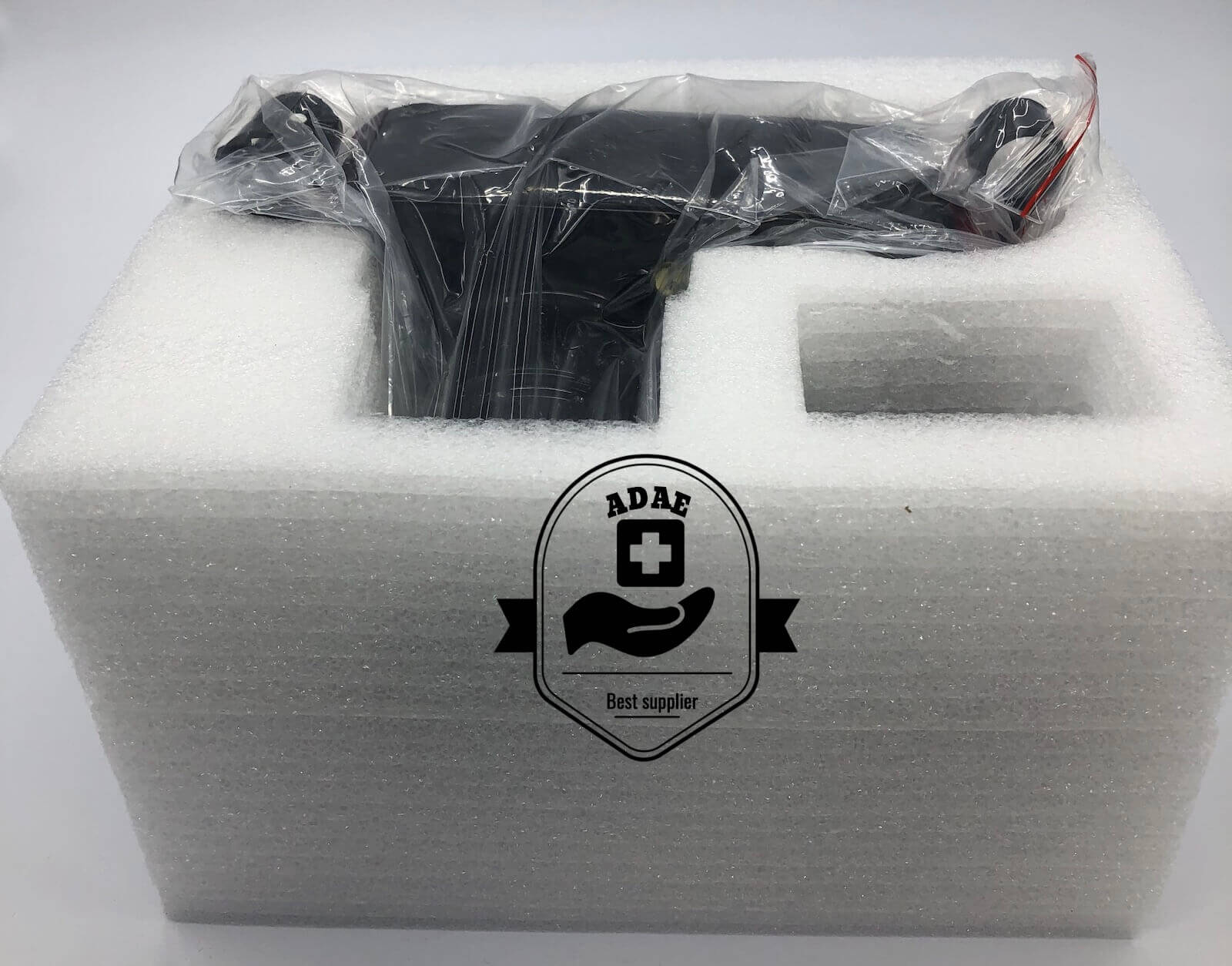

Watch the video for quick unboxing of Rayme portable X-ray

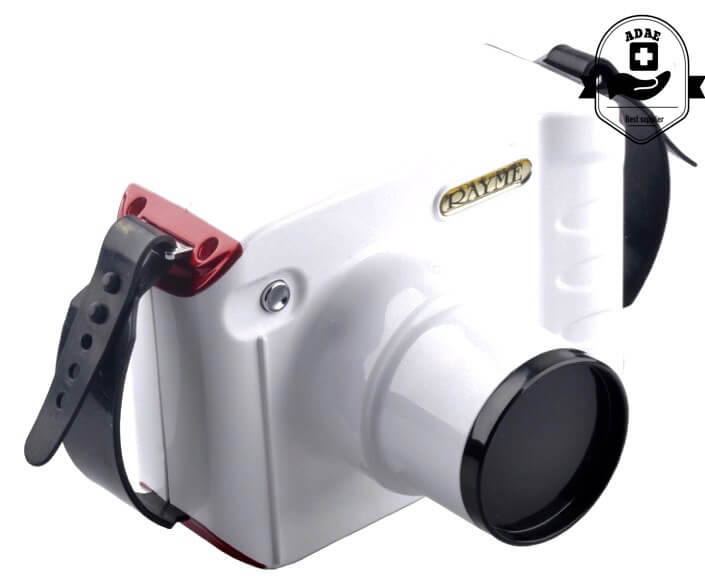

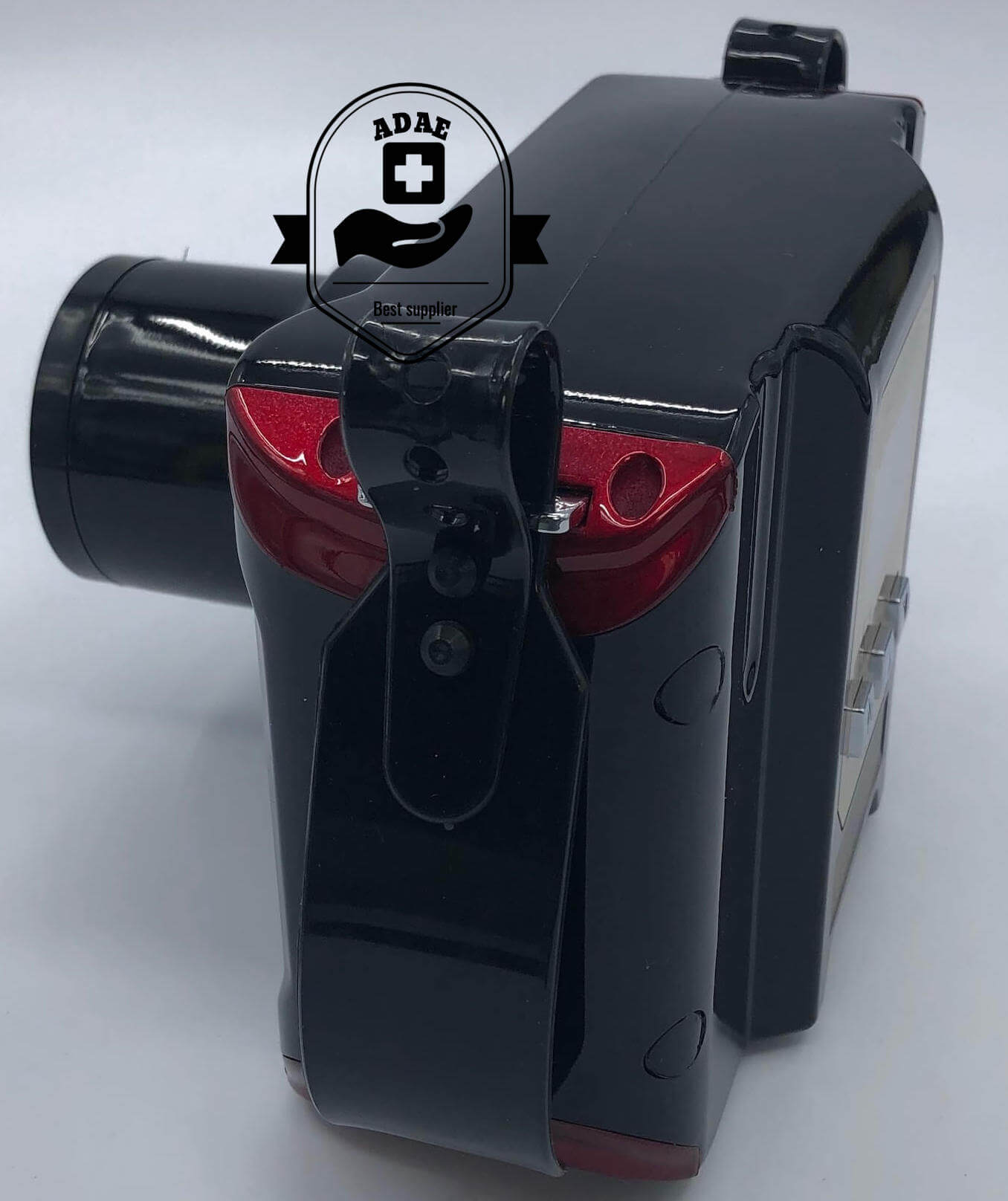

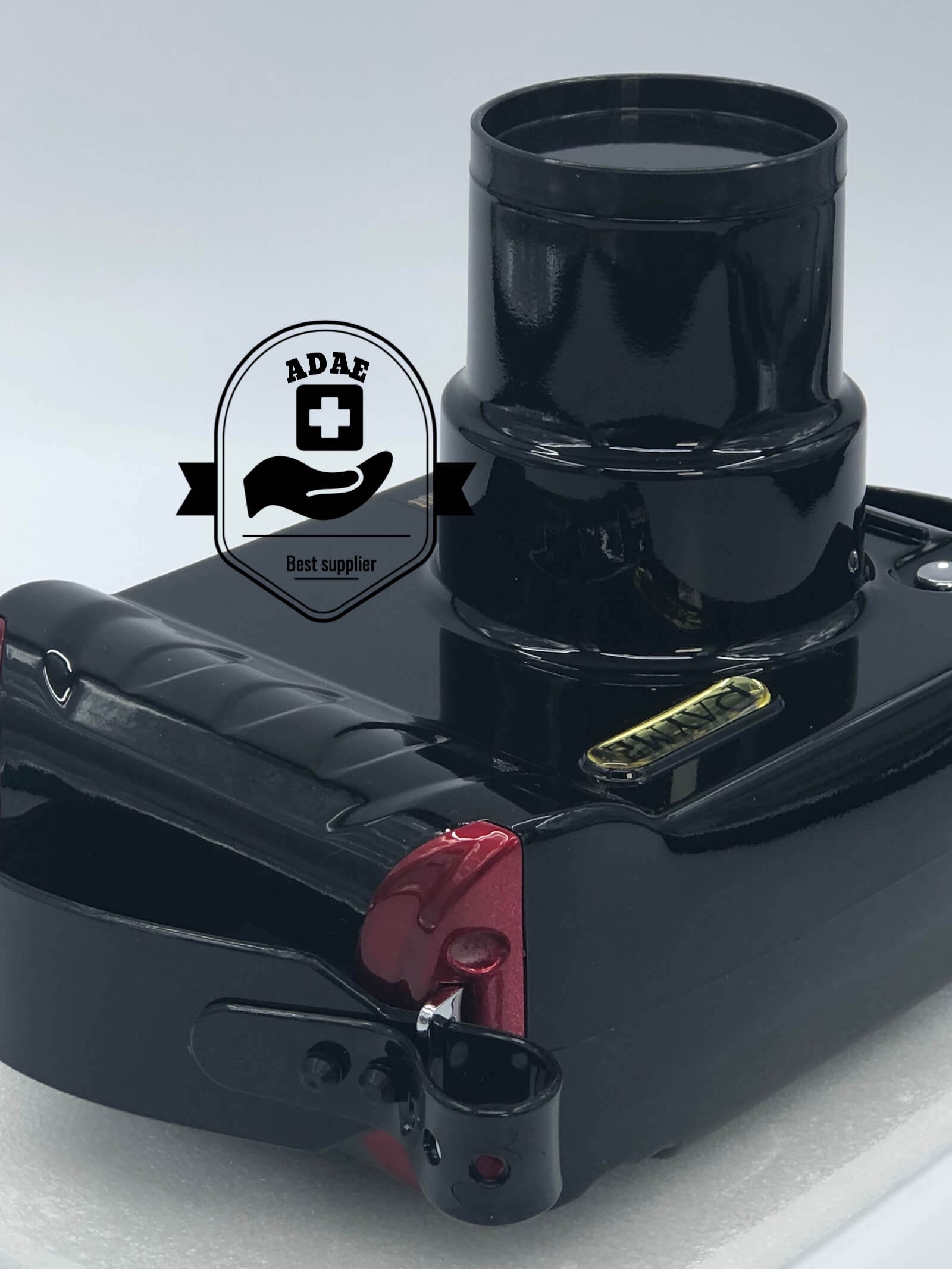

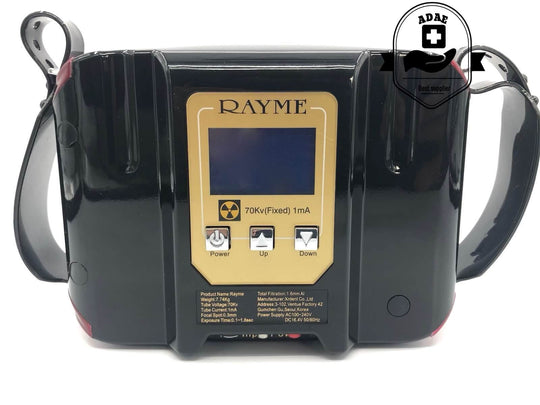

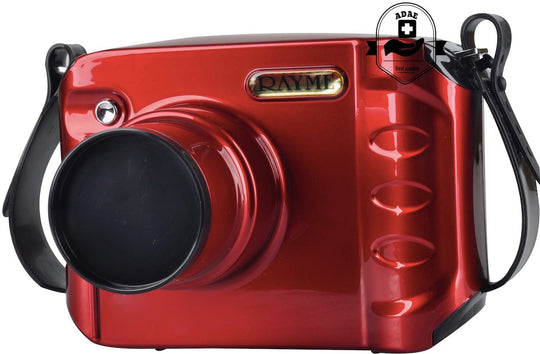

Rayme Korean Portable X-ray machine(Upgraded version)

  • $1,199

[widgetic-facebook-like id=5a9bcc69ecb2a1d47b8b4569 autoscale=on width=431 height=62 resize=fill-width]




Description

1-New upgraded features :

A.Upgraded Lithium Polymer battery with a longer life.

B. Complete electronic board upgrades for more stability.

C.Upgraded Bipolar fixed X-ray tube with smart cooling.

D.Smart upgraded X ray generator core.

2.Current : 1.0 A

3.Voltage : 16.8 VDC

4.Temperature : 0 °C ~ 40° C

5.Use condition

6.Max. current : 10 A

7.Voltage range : 12(min) ~ 16.8(MAX) V

8.Temperature : -20 °C ~ 60 °C

7.Charger

A– Model : JBL910A-1600

B– Input Voltage : 100 ~ 250 VAC

C– Output Voltage : 16.8 VDC

D– Current : 1.0A

Technical Data

  1. Name: Rayme ( made in South Korea)
  2. Tube Voltage: 70kV (fixed)
  3. Tube Current: 1mA (fixed)
  4. X-Ray Tube type: New Upgraded Bipolar fixed X-ray tube
  5. X-Ray Tube model: DG-073B-DC
  6. X-Ray Tube Focal Size: 0.3*0.3mm
  7. Cooling system: New Oil cooling system.
  8. Total filtration : 1.6 mm Al
  9. (Inherent filtration : 0.8mm, fixed added filter :0.7 mm Aluminum)
  10. Target angle : 21°
  11. Time Set-up function : 0.10 ~ 1.80 sec
  12. Source to image receptor distance : >10cm (fixed by cone)
  13. X-ray field : 50 mm (round-style)
  14. Size of main body : 139(W) x 163(H) x 66.5mm(D)
  15. Weight of body : About 1.8 kg (except the battery pack)

Warranty

One year

Watch the video for quality of X-ray image with sensor


A sample of X-ray images using Rayme portable X-ray machine
