- Rated Voltage: 110V, 220V±22V, 50Hz±1Hz.
- Vaporization temp:121℃/134℃
- Fuse: F15A ~250V.
- Ambient temp: +5℃~+40℃.

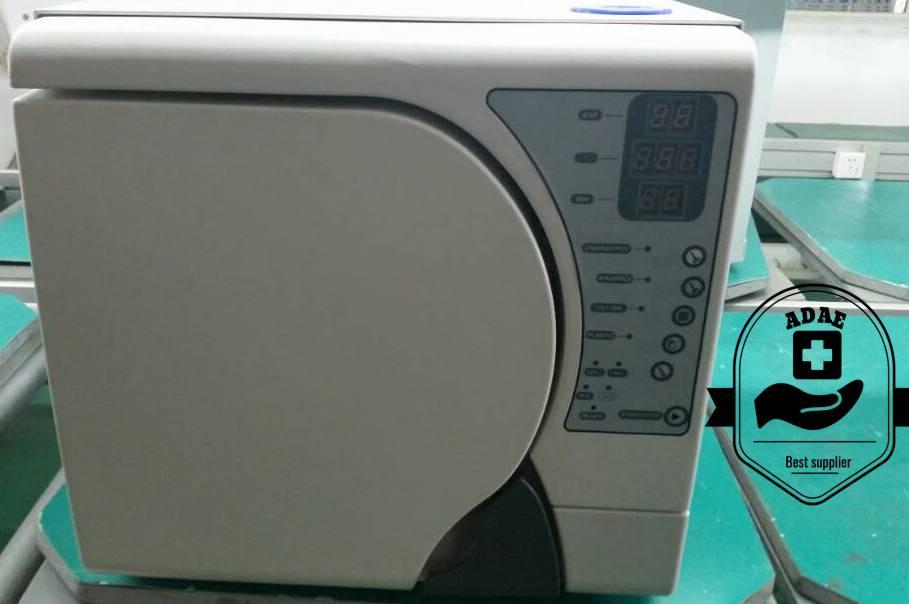

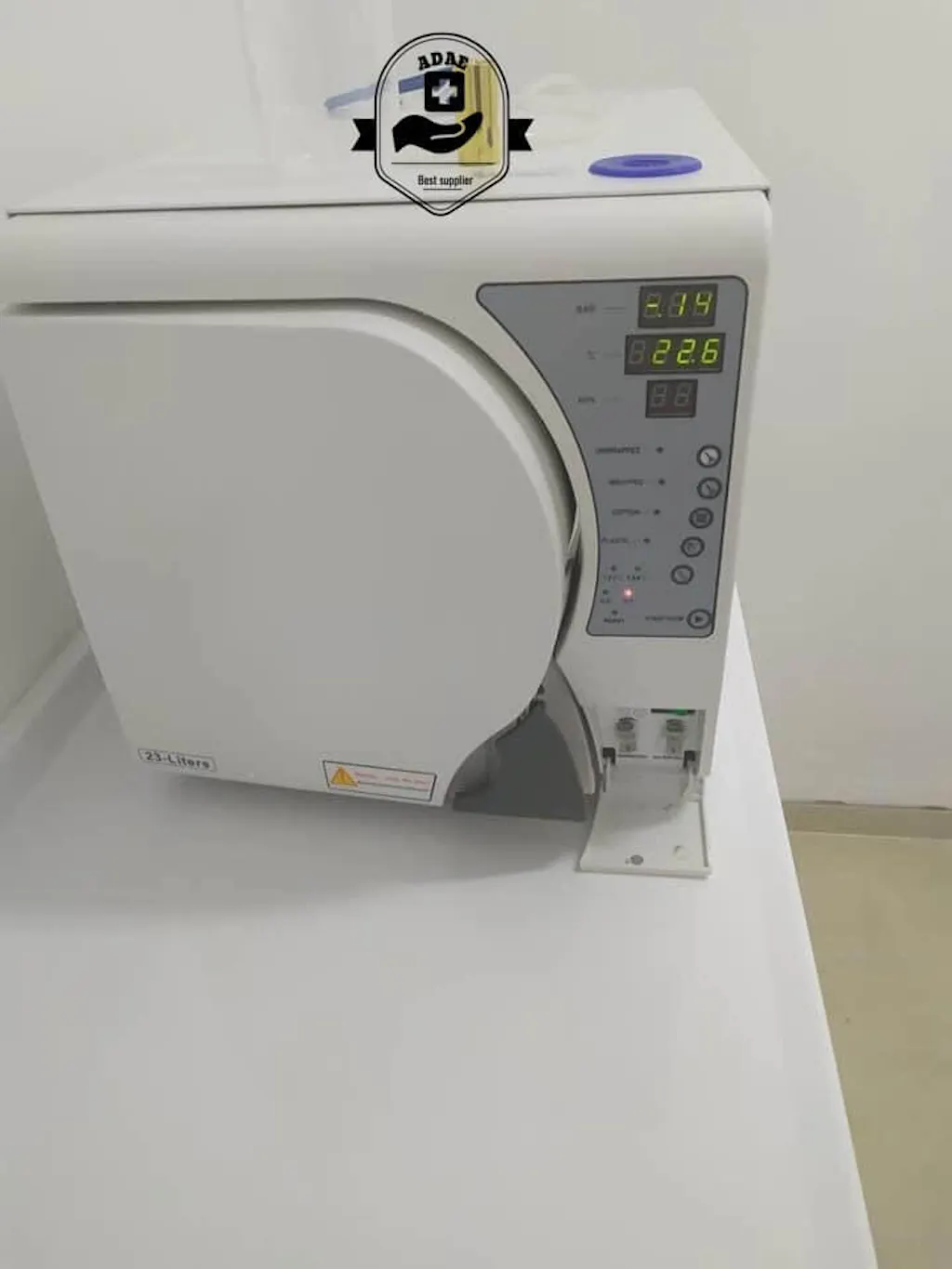

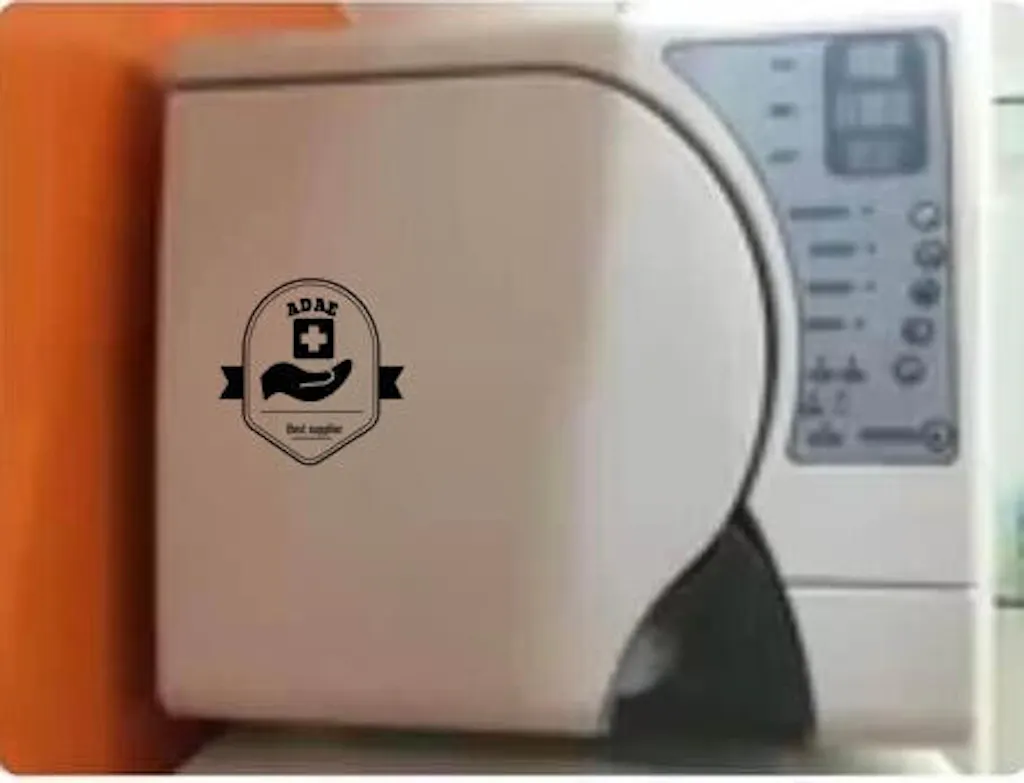

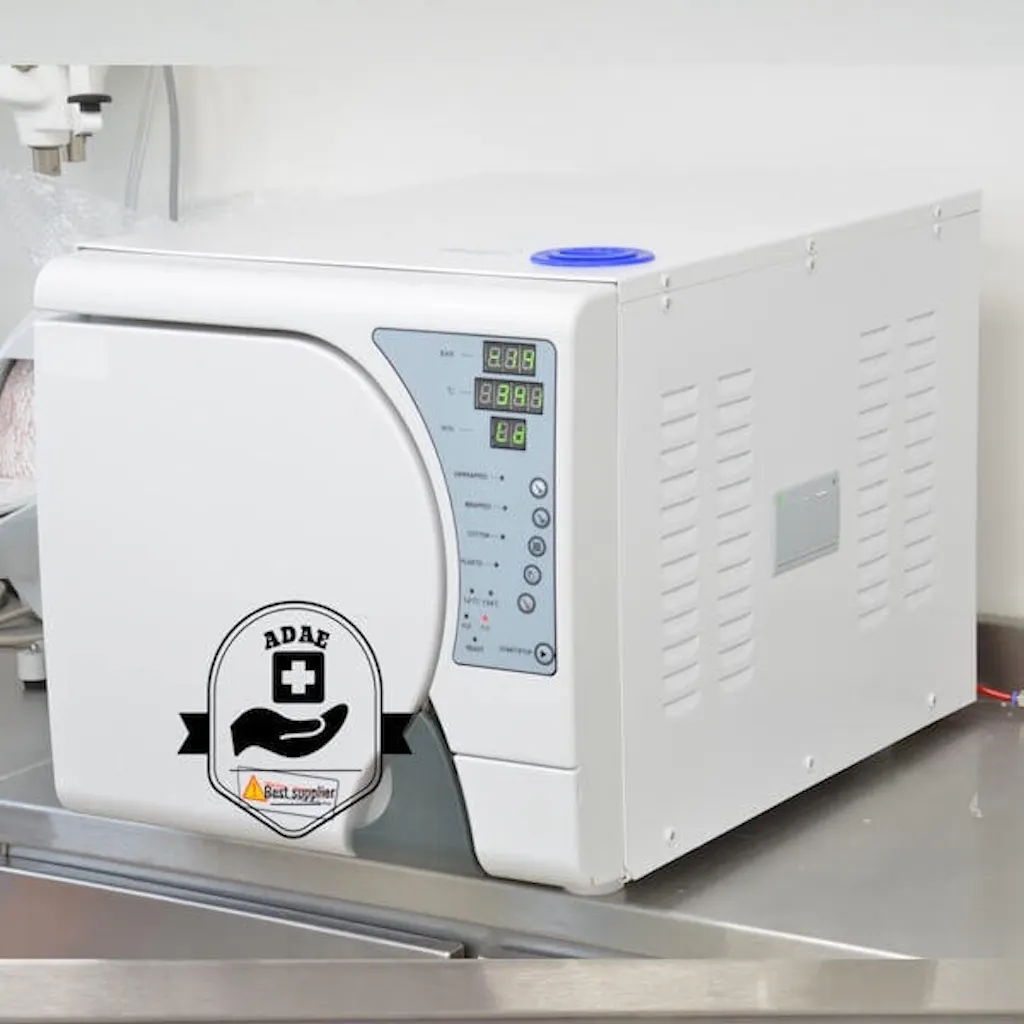

ADAE-1 dental autoclave (Class B)

Specification:
Product Description:
- Digital display.
- European Class B standard.
- With function of three pulse vacuum drying.
- Vacuum degree can reach to -0.82bar.
- Mechanical residual humidity less than 0.2%.
- The jet steam generator with spiral pipe.
- Door interlock protection, cavity with pressure, door cannot be opened make it more secure.
- The built-in printer with USB is optional to record the disinfection process.
- Water tank filled with warning system.
- Fault defect alarm system.
Chamber Size(mm):
18L: Φ250*355.
23L: Φ250*465.
Warranty
Optional part (Printer)

Sterilization Program Process(three vacuum):
1:Press "Start" to enter the sterilization program.
2:Preheat: Program starts , the first detection of the pot wall temperature , such as the pot wall temperature is below 120 ℃ , the pot wall heating coil will be heated to a predetermined value 120 ℃.
3:Pulsating vacuum evaporator heating first evacuated to a vacuum pumped -82Kpa or when the pot holding a high temperature operation up time can not be pumped -82Kpa 4 minutes of rest ; when heated vacuum evaporator , heated to 170 ℃.
4:Steam injection Pump coupling solenoid valve is opened ; injection pump with some frequency to the water evaporator , evaporator water into steam injection sterilization chamber ( stainless steel pot ) .
5:Exhaust buck:
When the pressure inside the sterilization chamber reached 1OO Kpa, the exhaust valve opens, the pressure drops 10Kpa, the exhaust valve is closed.
6:Second pulsating vacuum:
Second evacuation, the degree of vacuum pumped -82Kpa sterilizing chamber maintained at high temperatures or when the state can not be pumped to run 4 minutes -82Kpa.
7:The second steam injection
Pump coupling solenoid valve is opened; injection pump with some frequency to the water evaporator, evaporator water into steam injection sterilization chamber (stainless steel pot).
8:The second exhaust buck
When the sterilization chamber pressure reaches 1OOKpa, the exhaust valve opens, the pressure drops 10Kpa, the exhaust valve is closed.
9:Third pulsating vacuum:
Second evacuation, the degree of vacuum pumped -82Kpa sterilizing chamber maintained at high temperatures or when the state can not be pumped to run 4 minutes -82Kpa time.
10.The third steam injection
Pump coupling solenoid valve is opened; injection pump with some frequency to the water evaporator, evaporator water into steam injection sterilization chamber (stainless steel pot).
11.Sterilization stage
Pressure, temperature control: 121 ℃ pressure control in 110Kpa, pressure and temperature for 20 minutes;
134 ℃ pressure control point 210Kpa, pressure and temperature for 4 minutes;
12.Buck exhaust exhaust valve opens, the pressure drops 10Kpa;
13:Drying stage (15 minutes) Open the vacuum pump, vacuum for 10 minutes after opening the inlet valve; the intake valve open off 1 minute; about 1 minute when the intake valve opens again; about 1 minute before closing; the last minute to stop all action;
14.Completion of sterilization.
