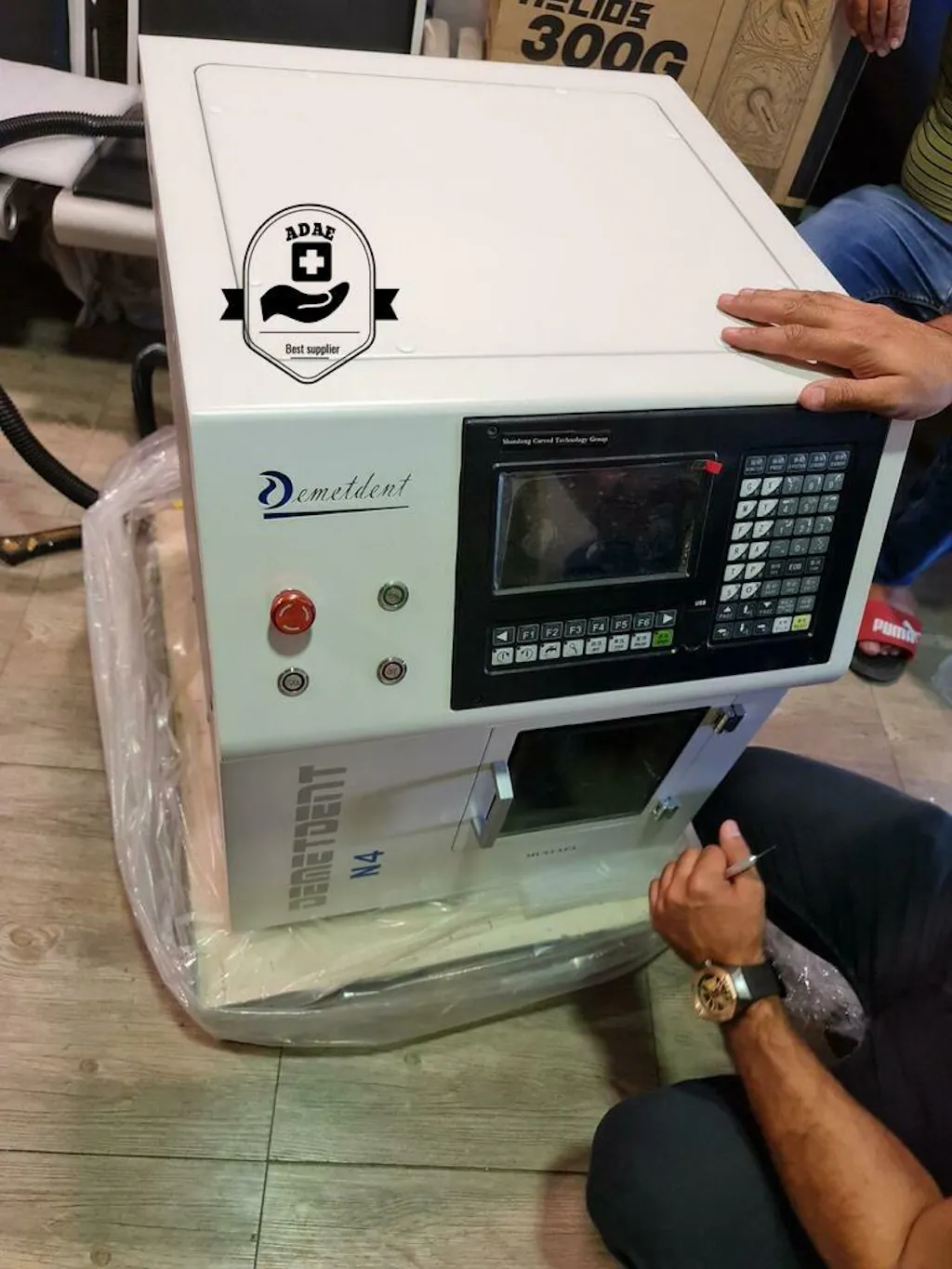

Demetdent JD-N4 dental Cad Cam milling machine (4 Axis)

  • $0

[widgetic-facebook-like id=5a9bcc69ecb2a1d47b8b4569 autoscale=on width=431 height=62 resize=fill-width]




Quick features

  • 4 Axis special zirconia milling machine.
  • Efficient zircones milling.
  • Extreme precision.
  • Excellent performance.
  • Extraordinary stability.
  • Special horizontal spindle design.
  • Worry free after-sales service.

Technical parameters

  1. Mode: JD-N4.
  2. Milling mode: Dry.
  3. Millable materials: Zirconia, Wax and PMMA.
  4. Product type: Crown/coping,Bridge, Inlay/Onlay.
  5. Max spindel speed: 60000 RPM.
  6. Spindle power: 1.5KW.
  7. Spindle Cooling: Water cooling.
  8. Rotation rane: A: ±360° .
  9. Number of tool housed: 3.
  10. Tool shank diameter: Φ4 mm.
  11. Tool change and check: Fully Automatic.
  12. Compatible compressed air: 0.7 MPa.
  13. Loadable workpiece shape: Disk diameter: 98mm-Thickness: ≤30 mm(max).
  14. Input Voltage: Single-phase 220V 50Hz/60Hz.
  15. Average milling time(dental crown):Zirconia: 8-15 min -Wax: 5-9 min.
  16. External dimensions: 530*670*710 mm.
  17. Weight: 109 KG.
  18. Control command set: NC code.
  19. Positioning accuracy: 0.005 mm.

Warranty

One year


Millable materials




Precise milling


Samples display
