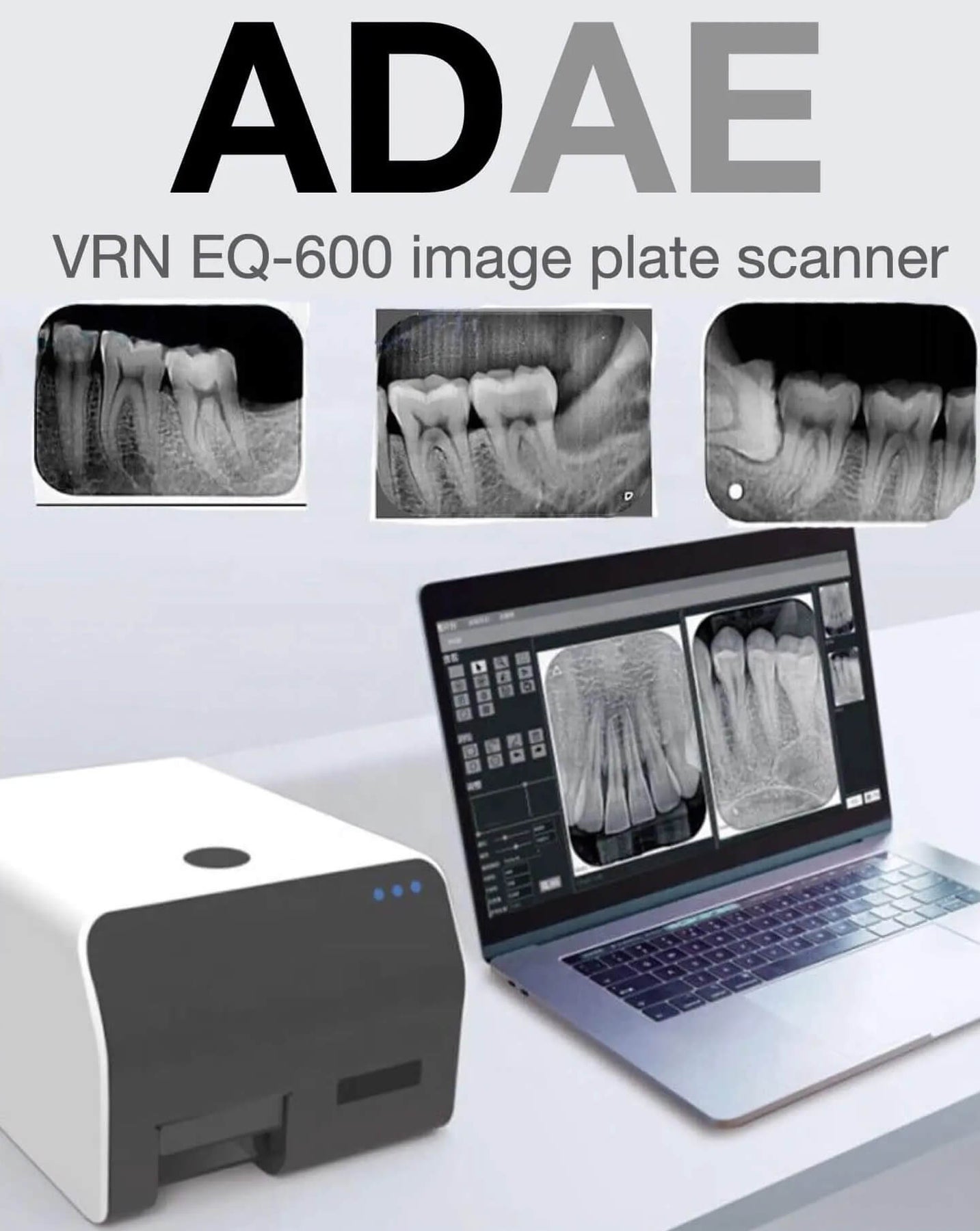

ADAE VRN EQ-600 Image plate scanner

ADAE VRN EQ-600 Image plate scanner

$2,499

Quick details

1. ADAE VRN EQ-600 image plate PSP scanner supports IP sizes:
Size 0: (22×31mm).
Size 1 : (24×40mm).
Size 2: (31×41mm).
Size 3: (27×54mm).

2. System Configuration: Windows XP,Windows 7,Windows 8,Windows 10.

3. Plate Sizes included: 0, 1, 2, 3 (Meet the diagnostic needs of children and adults).

Support IP sizes:

0 (22×31mm)：Standard-343×484 pixels High-628×885 pixels.

1 (24×40mm)：Standard-375×625 pixels High-685×1143 pixels.

2( 31×41mm)：Standard-484×640 pixels High-886×1171 pixels.

3 (27×54mm)：Standard-421×843 pixels High-771×1542 pixels.

Description

Selectable Pixel Size：35μm.
Detector Technology：APS CMOS.
Software*：UT-Dental.
Active Area：32*54mm.
Mechanical Size：34*55mm.
Readout Time：15s.
Data Capture：16-Bits65,536 grey level.
Eraser：Embedded(auto).
Dimensions (H*W*D)：305*211*182mm.
Weight：6Kg.
System Configuration：Windows XP,Windows 7,Windows 8,Windows 10.
Power：100-240V(AC)50/60Hz1.5A.
Interface：USB 2.0 high speed(480 Mbps) /Ethernet(100Mbps).
Work Temperature：10 to 40℃.
Storage Temperature：-25 to +60℃.
Humidity(non-condensing)：10 to 93% R.H.

Simple operation process, quick and easy to use

ADAE VRN EQ-600 PSP dental scanner user manual from ADAE Dental Store

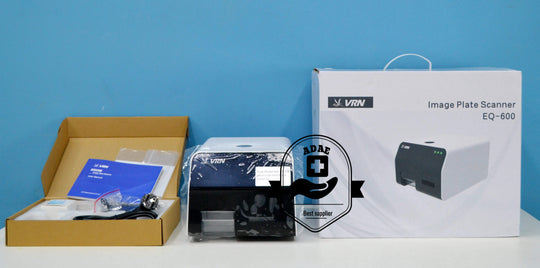

Packing list

Mian machine: 1 pc
Plate Sizes included: 0, 1, 2, 3.
350 protection seleves included.
USB cable : 1 pc.
USB flash driver ( software installation) : 1 pc.
Power adaptor : 1 pc.
Power line: 1 pc.

Warranty

One year.
