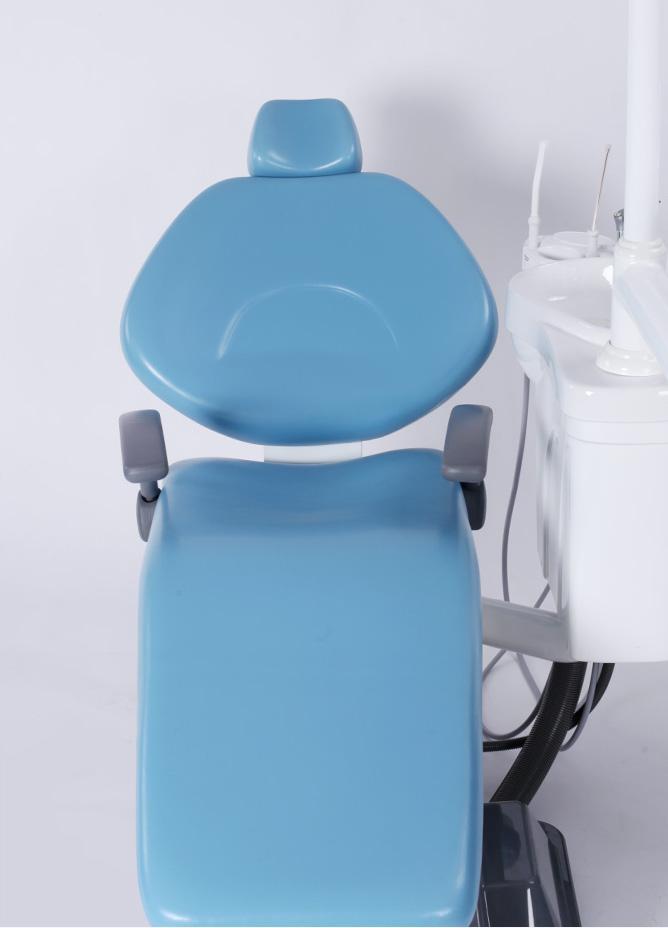

ADAE E24 dental unit

  • $2,499


Main features and standard accessories

  1. FDA-CE-TGA approved.
  2. All controlled by the electric valve.
  3. High-quality DC Motor.
  4. An automatic thermostatic water supply system.
  5. Handpiece tubing with standard fittings (3sets).
  6. Three-way syringe (one for hot, one for cold) (2sets).
  7. Water suction and saliva ejector (1set).
  8. Powerful suction (HVE) apparatus (1set).
  9. Easy cleaning Integral ceramic spittoon.
  10. Built-in water purified system with a bottle.
  11. Strong and weak dual-purpose operation light (1set).
  12. .Low-tension X-film viewer (1set).
  13. Spirit lock tight Equilibrium Device.
  14. Dentist's stool (1set).
  15. Suitable for adult and children headrest.
  16. Foot pedal (1set).

Specifications:

1. Supply Voltage (110V 60Hz or 220V 50Hz ).

2. Air Pressure (>0.55Mpa).

3. Water Pressure (0.2Mpa-.04Mpa).

4. Lowest position of Dental chair (440mm).

5. The highest position of Dental chair (860mm).

6. Highest smallest angle of Dental Chair ( 5°).

7. Lowest smallest angle of Dental Chair ( 85°).

8. Gross Weight: 250kg.

9. Net Weight: 220kg.

10. Dimension: 138x98x118cm.

11. Package: Wooden cases.

Warranty:

One year





     Complete dental handpiece kit

    Kit Includes :

  1. Led dental turbines 2pcs.
  2. Contra angle low-speed handpiece 1pc.
  3. Straight handpiece 1 pc.
  4. Air motor 1 pc.
  5. Luxury Dental box 1 pc.

    Technical parameters and specifications for the low-speed handpiece
    1. Air Pressure:0.25(Mpa)-0.3(Mpa)
    2. Water pressure:198Kpa(2Kg)
    3. Forward rotation speed:18(krpm)
    4. Reversal rotation speed:16( krpm)
    5. Torque:0.4(N)-0.45(N)
    6. Bur size:Φ2.334-Φ2.355(mm)
    7. Water flow:90(min/ml)-110(min/ml)
    8. Water pressure:0.2(Mpa)-0.23(Mpa)
    9. Atomization pressure:0.3(Mpa)-0.35(Mpa)
    10. Noise:≤65dB
    11. Chuck type:push button type


    Description:Internal watercourse, push-button type, can use polisher, burs, dental lab disc, reamer, 4 holes and 2 holes optional

    Technical parameters and specifications for the dental turbine

    1. Air Pressure:0.25(Mpa)-0.3(Mpa)
    2. Rotor Speed:300(krpm)-350(krpm)
    3. Torque:0.4(N)-0.45(N)
    4. Water flow:90(min/ml)-110(min/ml)
    5. Water pressure:0.2(Mpa)-0.23(Mpa)
    6. Atomization pressure:0.3(Mpa)-0.35(Mpa)
    7. Noise:≤65dB
    8. Light:LED
    9. Luminance:16000(LUX)-20000(LUX)
    10. Temperature:5500(K)-6000(K)


    Description:Torque head, push button, E-generator, triple spray,4 holes and 2 holes optional, exposed cartridge, the cartridge can be compatible with KAVO 8000 handpiece.

Details :

  1. Voltage: 110V-220V.
  2. Power: 850W.
  3. Frequency: 50-60 Hz.
  4. Traffic: 100L/min.
  5. Noise: 53-60Db.
  6. Speed: 1400r/min.
  7. Volume: 32L.
  8. Maximum pressure: 0.8MPa Start-up pressure: 0.5MPa.
  9. NW: 26Kg GW(Carton):29Kg GW(Wooden box):32Kg Size: 40×40×62cm.
  10. Carton: 44×44×72cm.
  11. Wooden box Dimension: 45×45×65cm.

Details :

  1. 17 inch HD Taiwan chip technology.
  2. Sony camera probe (10 megapixels).
  3. U disk can play 3D Video.
  4. Communication between doctor and patient.
  5. Can store pictures and videos.
  6. Handel with close shooting focus technology.
  7. Dual remote control camera design play pack.
  8. You can choose between single and Quad display.
  9. 8G U disk.
  10. Mounting bracket .( sizes (45 mm,51mm).
