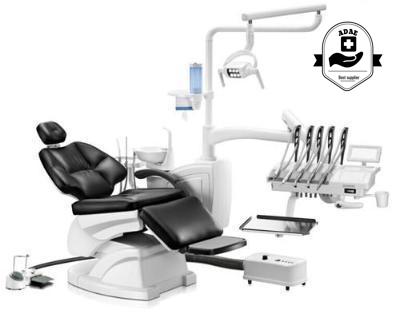

ADAE-8 dental unit

  • $4,950

[widgetic-facebook-like id=5a9bcc69ecb2a1d47b8b4569 autoscale=on width=431 height=62 resize=fill-width]



Standard specifications

  1.  90º rotatable ceramic(glass) spittoon 1 set
  2.  Leather cushion 1 set
  3.  Synchronism Motor dental chair control system 1 set
  4.  24V noiseless DC under voltage motor chair 1 set
  5.  Built-in water purified system 1 set
  6. Deluxe LED inductive operating lamp 1 set
  7. DC under voltage X-film viewer 1 set
  8.  DC under voltage X-film viewer 1 set
  9.  3-way syringe with cold/hot water 1 piece each
  10.  Saliva ejector with high and low 1 set each
  11.  Integrated foot controller 1 set
  12.  Deluxe Leather dentist stool 1 set
  13. Imported water/air tube.

Technical parameters

  1.  Supplied voltage:  220V/50HZ or 110V/ 60HZ
  2.  Supplied air pressure:  0.5Mpa-0.8Mpa
  3.  Supplied Water pressure:  0.2Mpa-0.4Mpa

Remarks

With Latest Foldable Style Chair Body; Deluxe Inductive LED Lamp; Imported Linak Monitor; Floor- mounted Box; Real Leather for a chair; Leather Dentist Stool; Imported water/air tube

Warranty

One Year


Wide range of vivid colors manufactured from Premium Leather for ultimate comfort

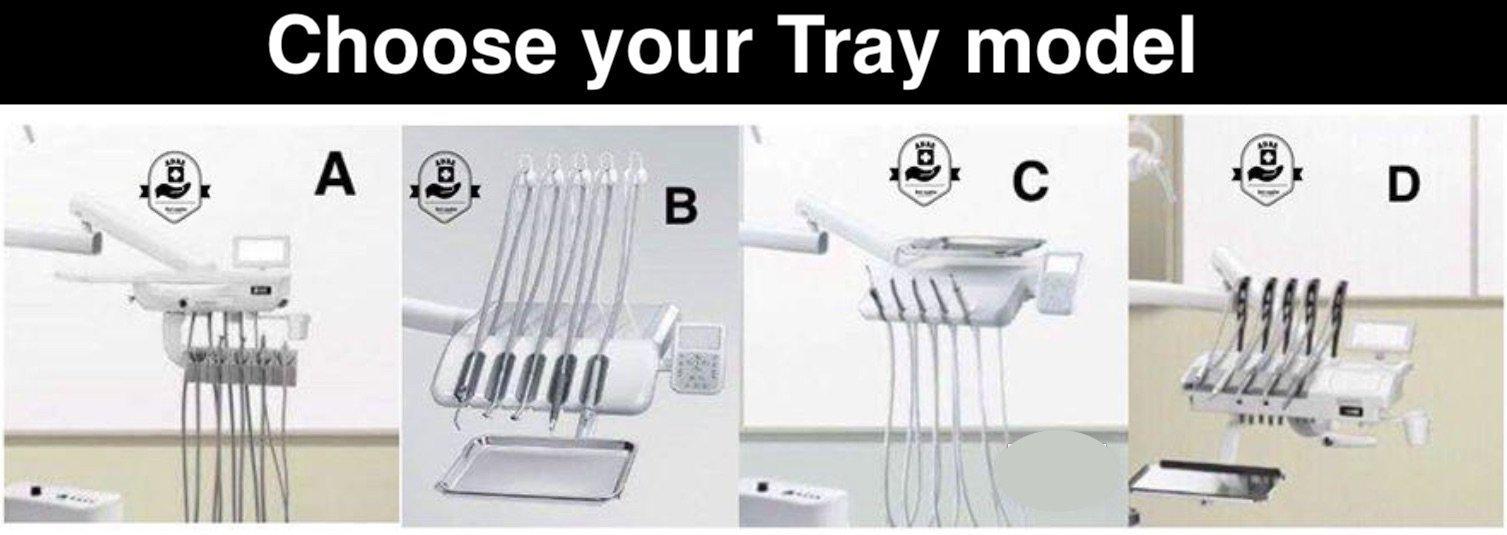

Four models of dental tray that fit each dentist's need

Option A: This option includes :

1. Built-in Woodpecker scaler N2-LED

2. Built-in Woodpecker LED.Q curing light

3. Complete dental handpiece kit

Kit Includes :

  1. Led dental turbines  2pcs.
  2. Contra angle low-speed handpiece 1pc.
  3. Straight handpiece  1 pc.
  4. Air motor 1 pc.
  5. Luxury Dental box 1 pc.

Technical parameters and specifications for the low-speed handpiece

  1. Air Pressure:0.25(Mpa)-0.3(Mpa)
  2. Water pressure:198Kpa(2Kg)
  3. Forward rotation speed:18(krpm)
  4. Reversal rotation speed:16( krpm)
  5. Torque:0.4(N)-0.45(N)
  6. Bur size:Φ2.334-Φ2.355(mm)
  7. Water flow:90(min/ml)-110(min/ml)
  8. Water pressure:0.2(Mpa)-0.23(Mpa)
  9. Atomization pressure:0.3(Mpa)-0.35(Mpa)
  10. Noise:≤65dB
  11. Chuck type:push button type


Description:Internal watercourse, push-button type, can use polisher, burs, dental lab disc, reamer, 4 holes and 2 holes optional

Technical parameters and specifications for the dental turbine

  1. Air Pressure:0.25(Mpa)-0.3(Mpa)
  2. Rotor Speed:300(krpm)-350(krpm)
  3. Torque:0.4(N)-0.45(N)
  4. Water flow:90(min/ml)-110(min/ml)
  5. Water pressure:0.2(Mpa)-0.23(Mpa)
  6. Atomization pressure:0.3(Mpa)-0.35(Mpa)
  7. Noise:≤65dB
  8. Light:LED
  9. Luminance:16000(LUX)-20000(LUX)
  10. Temperature:5500(K)-6000(K)


Description:Torque head, push button, E-generator, triple spray,4 holes and 2 holes optional, exposed cartridge, the cartridge can be compatible with KAVO 8000 handpiece.

Option B: This option includes :

AD228 silent air compressor (Oil-Free)-850W-32L

Details :

  1. Voltage: 110V-220V.
  2. Power: 850W
  3. Frequency: 60-50Hz.
  4. Traffic: 100L/min.
  5. Noise: 53-60Db.
  6. Speed: 1400r/min.
  7. Volume: 32L.
  8. Maximum pressure: 0.8MPa Start-up pressure: 0.5MPa.
  9. NW: 26Kg GW(Carton):29Kg GW(Wooden box):32Kg Size: 40×40×62cm.
  10. Carton: 44×44×72cm.
  11. Wooden box Dimension: 45×45×65cm.

Option C: This option includes :

Sony probe Intra-Oral camera 5 megapixels with 17 inch LCD

Details :

  1. 17 inch HD Taiwan chip technology.
  2. Sony camera probe (10 megapixels).
  3. U disk can play 3D Video.
  4. Communication between doctor and patient.
  5. Can store pictures and videos.
  6. Handel with close shooting focus technology.
  7. Dual remote control camera design play pack.
  8. You can choose between single and Quad display.
  9. 8G U disk.
  10. Mounting bracket .( sizes (45 mm,51mm).

Standard specifications

1. 90º rotatable ceramic(glass) spittoon 1 set

2. Leather cushion 1 set

3. Synchronism Motor dental chair control system 1 set 4. 24V noiseless DC under voltage motor chair 1 set

5. Built-in water purified system 1 set

6. Deluxe LED inductive operating lamp 1 set Folding 7. DC under voltage X-film viewer 1 set

7. DC under voltage X-film viewer 1 set

8. 3-way syringe with cold/hot water 1 piece each

9. Saliva ejector with high and low 1 set each

10. Integrated foot controller 1 set

11. Deluxe Leather dentist stool 1 set

12.Imported water/air tube.

Technical parameters

1. Supplied voltage:  220V/50HZ or 110V/ 60HZ

2. Supplied air pressure:  0.5Mpa-0.8Mpa

3. Supplied Water pressure:  0.2Mpa-0.4Mpa

Remarks

With Latest Foldable Style Chair Body; Deluxe Inductive LED Lamp; Imported Linak Monitor; Floor- mounted Box; Real Leather for a chair; Leather Dentist Stool; Imported water/air tube

Warranty

One Year
