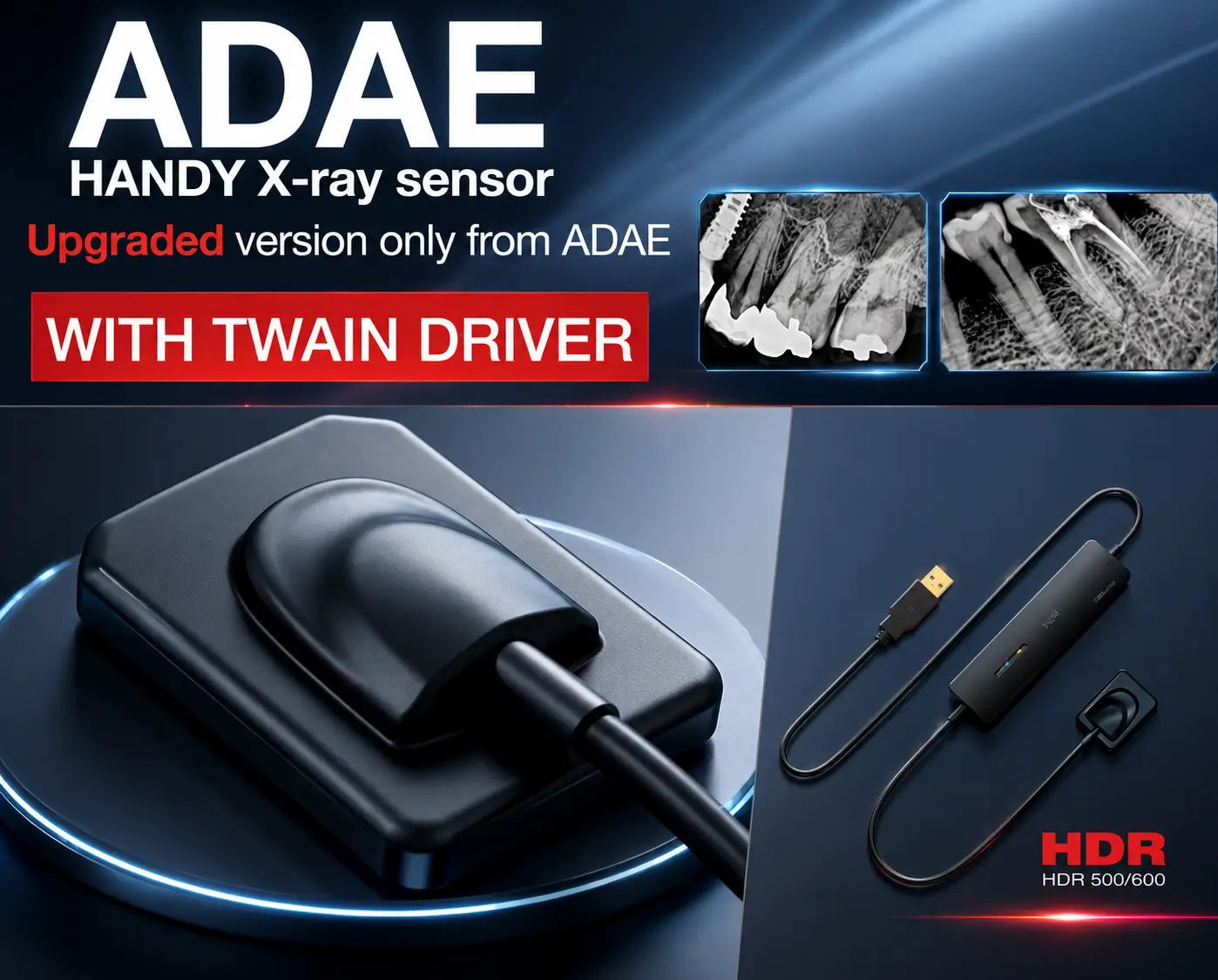

Handy X ray sensor HDR500-600-Second generation (Upgraded version)

  • $2,300

[widgetic-facebook-like id=5a9bcc69ecb2a1d47b8b4569 autoscale=on width=431 height=62 resize=fill-width]


Model Number: HDR 500/600
Place of Origin: ShangHai, China
Chip Type: CMOS APS
Fiber Optical Plate: Yes Scintillator:
GOS/Csl: Ti
Dimension: 27.5*38.5mm 32.3*44.3mm
Image Pixel: 1.9M(1600*1200) 2.7M(1920*1440)
Operation: Windows 2000/XP/Win7/Win8/(32bit&64bit)
China Dental X-ray Sensor Additional: TWAIN Driver


Technical Data

Usb X-ray Sensor: APS CMOS
External dimension (mm): 40×26(HDR-500)
Sensor Active Area: 30×22.5(HDR-500)
Sensor Thickness: 6mm
Dynamic Range: 0~4,096
Power: 5V±0.5V
Image Transfer: USB2.0
Cable Length: ≥ 3m


Sharing the Sensor Between Rooms

You can share the sensor between several rooms to provide access for several dentist based on Handy Server software. The computer must have the HandyDentist dental imaging software, and HandyServer must installed in one computer.
10 To share the sensor between several computers, move it from room to room. When you connect the sensor to a USB 2.0 port on the computer, the sensor is recognized automatically and is operational.
To share data between rooms, you can connect them to remote data---HandyServer database. The HandyDentist dental imaging software needs only to access a shared database on the same computer or on a remote computer, which means HandyServer


Operating conditions

Environment Temperature : +10℃~+40℃

Environment relative humidity : ≤95%;

Air pressure : 860hPa~1060hPa;

Transport and Storage conditions

Environment Temperature: -25℃~+60℃;
Environment relative humidity : 10%~93%;
Air pressure : 860hPa~1060hPa;

Packing list

1. Manual 1pcs
2. Flash drive 1pcs
3. X-Ray Sensor and Control Box 1pcs
4. Holder 1pcs
5. Sleeves 1 bag

Packing information

Carton size:47*38*14cm


One Year
